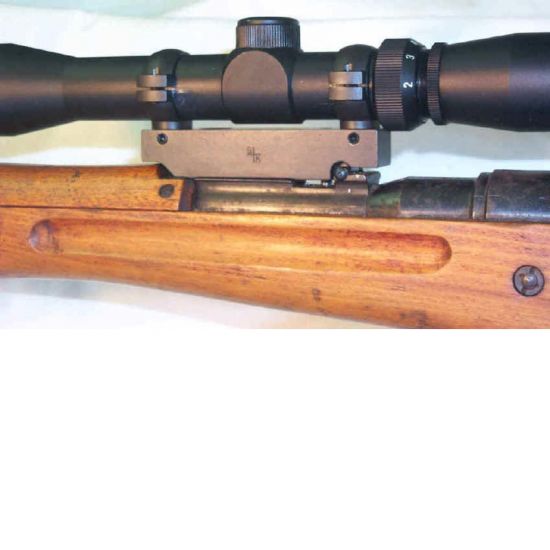

Japanese Arisaka 7.7 Mauser Scout Scope Mount - Includes Rings - S&K


Japanese Arisaka 7.7 Mauser Scout Scope Mount - Includes Rings - S&K

Processing...
Item #: SKJAP65

$75.95

Out of Stock
Place on back-order to ship when back in stock. We will only charge you when it ships out the door.

We do not double-charge shipping on back-orders. You only pay shipping once.
Qty

Manufacturer MPN:
S&K Mounts JAP65

UPC: none
Weight: 0.40 pounds


Product Description

No drilling, tapping or major alteration. Guaranteed to hold zero. Can be removed and reinstalled easily. Includes 1" fully machined, horizontally split scope rings and is windage adjustable. Requires a long eye relief scope. Made in the USA of top-grade virgin metal. Will not fit the small carbine Type 38 rifle.

Installation instructions for the Japanese Arasaka


Remove the rear sight by pushing the hinge pin out & then remove the sight & spring. The spring is removed by tapping it toward the barrel end. You will have to first remove the wood cover. Slide the special nut into the slot the spring was removed from. The nut is tapered. Insert the small side of the nut from the barrel end of the slot. Place the mount into the rear sight area aligning the two 4-40 screw holes where the pin was removed. Insert the two 4-40 x 3/8 button head screws into the mount & tighten lightly. Insert the 10-32 x 5/8 flat head screw into the mount & tighten. Insert the 10-32 x ½ set screw into the mount & tighten.
