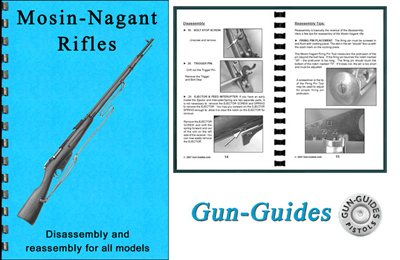

Mosin Nagant Rifle Disassembly and Reassembly Guide - Gun Guides
Manual includes information on all models. Easy to use -- Comb binding lies open and flat on your work surface. 16 pages & 39+ high-resolution grayscale images. Cardstock cover. Bright white paper.
Includes a brief history and Exploded Part Diagrams (28 parts - 2 Pages).
Disassembly instructions cover Clear Rifle, Remove Bolt, Decock Bolt, Bolt Connector, Bolt Head, Connecting Bar, Extractor, Firing Pin, Cocking Piece, Sling, Cleaning Rod, Stock, Handguard, Receiver Tang Screw, Trigger Guard Screw, Magazine Assembly, Barrel & Receiver, Butt Plate, Barrel Bands, Nose Cap, Cross Bolt, Sights, Magazine Follower Assembly, Floorplate Latch, Bolt Stop & Screw, Trigger Pin & Trigger, Ejector & Interupter.
Also includes reassembly tips and Accessories.
