The universal featherweight bipod will mount to any rifle sling swivel stud. Can be adapted to swivel or remain fixed. Easily adjusts from 9" to 13". Weighs only 6oz. Allows use of sling. Extra sling swivel stud included. All hardware included. Will not scratch, rust or dent. Incudes stock protective pad and has non-slip rubber feet.

DuPont extreme temperature glass reinforced polymer.

Made in the USA. Limited Lifetime Warranty.

Fits any firearm with a sling swivel stud.

Note: Customer assembly required to determine Swivel or Non-Swivel Configuration or AR-15 Configuration. Push “Snap-N-Lock” Button to Fold Legs Forward, Rearward or Downward.

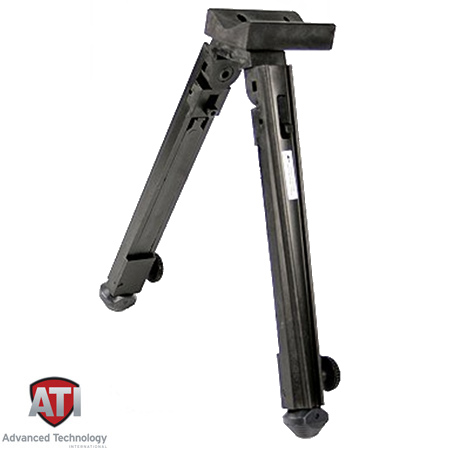

Universal Featherweight Bipod

Product Installation Guide

Step 1: Begin by deciding if you would like a fixed or swivel bipod. After deciding, install either the fixed or swivel bipod collar halves in the assembly.
Note: If the collar haves were used, place the O-ring into the groove on the top side of the mounting bracket.

Step 2: Next, Install the yoke assembly over the post on the mounting bracket and align (2) pins on the bottom of the yoke with the holes in the fixed bipod collar or in open area between the swivel collar halves.

Step 3: Install the washer over the post and secure with the pink pre-coated #10 x ¾” sheet metal screw using a phillips head screwdriver.
Note: The fixed bipod will use the washer with the counterbore top, and the swivel bipod will use the washer with the flat top.

Step 4: Next you will begin to install the left and right legs by inserting the post on the leg into the hole on the yoke. Using a phillips head screwdriver secure the left and right legs to the yoke with the leg mounting washers and the #10 x ¾” sheet metal screws.

Step 5: Begin by installing the #10-32 x ¼ set screw into the bottom of the ½” x 20 x 1 1/8 mounting column with the supplied allen wrench until flush with the bottom of the mounting column.

Step 6: Place the ½ x 20 x 1 1/8 mounting column over the front sling swivel. Align the swivel stud through the hole with the mounting column hole; then install and center the retaining pin.

Step 7: Tighten the set screw which you installed in step 2 and then install the new 10-32 x 5/16” threaded sling swivel stud and tighten.

Step 8: Align and install bipod over the mounting column with the legs parallel to the barrel and pointing toward the muzzle. (Depress the “Snap-N-Lock” button and rotate the legs 180 degrees).

Step 9: Place the mounting column washer over the mounting column.

Step 10: Install the ½ x 20 thin nut onto the column and hand tighten, plus ¼ turn maximum to complete the installation. Failure to follow this procedure could result in damage to the stock. DO NOT OVERTIGHTEN.

Step 11: To install the bipod on a polymer forend begin by removing the lower handguard.

Step 12: Insert the 10-32 x ¾” round bipod barrel nut threaded adapter through the hole in the lower handguard.

Step 13: Align and install the 10-32 x 5/16” sling swivel stud. Next, reinstall the lower handguard.
Note: To finish the installation process follow steps 5-11.
